Is Your Electrical Panel Sending You Signals? How to Test It Safely

1. Understanding the Importance of a Functional Electrical Panel

Ever wonder what keeps the lights on and your gadgets humming? It's your electrical panel, that unsung hero usually tucked away in a basement, garage, or closet. This metal box is the heart of your home's electrical system, distributing power to every outlet and appliance. But like any hardworking component, it can experience wear and tear. Knowing how to test an electrical panel isn't just about satisfying curiosity; it's about ensuring safety and preventing potential hazards like electrical fires. Think of it as giving your home's nervous system a check-up!

Ignoring warning signs from your electrical panel can lead to some seriously unpleasant consequences. Were talking flickering lights, breakers tripping constantly, or even the smell of burning plastic. No fun! By learning some basic testing procedures, you can identify potential problems early and call in a qualified electrician before things escalate. Its like catching a cold before it turns into the flu — much easier to handle in the early stages.

Safety first, always! Working with electricity can be dangerous, so if you're not comfortable with electrical work, please, please call a professional. This article provides general information and should not be a substitute for professional advice. Always disconnect power before touching any electrical components, and use appropriate safety gear like insulated gloves and eye protection. Better safe than sorry, right?

So, are you ready to roll up your sleeves (figuratively, of course, since you'll want to keep your hands away from live wires!) and learn how to give your electrical panel a check-up? Lets dive in!

Visual Inspection

2. What to Look for During a Visual Check

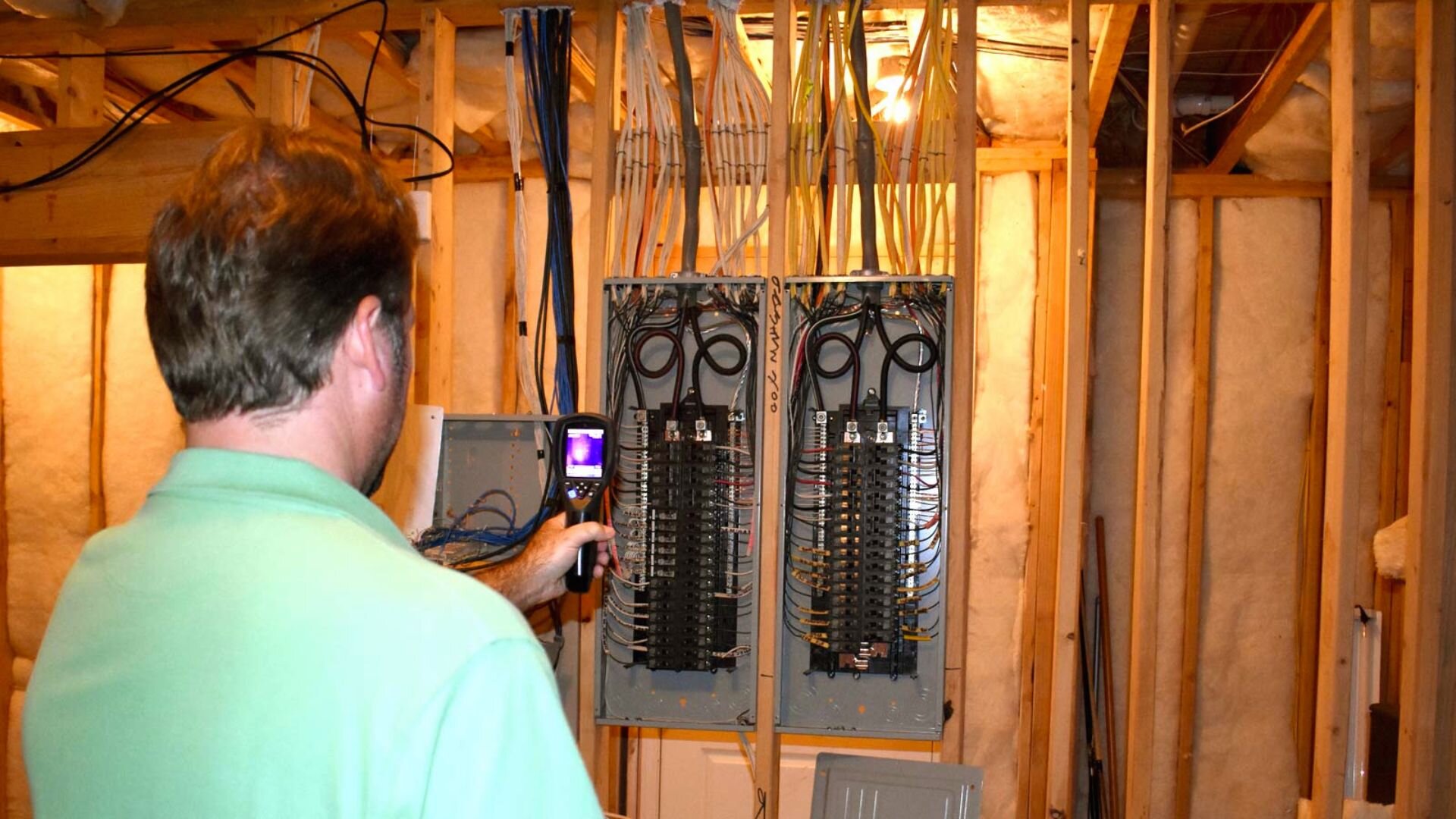

Before you grab any tools or even think about touching anything electrical, start with a good old-fashioned visual inspection. This is like giving your panel a once-over to spot any obvious red flags. Look for things like rust, corrosion, or signs of water damage. These are telltale signs of potential problems that need professional attention, ASAP.

Next, check for any loose or damaged wires. Are any of the wires hanging out or looking frayed? Is the panel itself cracked or damaged? These are all serious issues that require immediate attention from a qualified electrician. Think of it like checking your car's tires before a road trip — you want to make sure everything is in good shape before you hit the road (or, in this case, keep the lights on).

Take a peek inside the panel (after safely turning off the main breaker, of course!). Look for any signs of overheating, such as melted or discolored components. Smell anything burning? That's a HUGE red flag. Also, check the breakers themselves. Are any of them discolored or damaged? Do they feel loose or wobbly when you try to flip them? These could indicate a faulty breaker that needs to be replaced.

Finally, make sure the panel cover is securely in place. This cover is there for a reason — to protect you from accidental contact with live wires. If the cover is damaged or missing, replace it immediately. Seriously, don't wait. It's a simple fix that can prevent a potentially dangerous situation. Imagine leaving the door open to your house — you wouldn't do that, would you? The panel cover is like the door to your electrical system, keeping unwanted things (like curious fingers) out.

Testing Breakers

3. Using a Multimeter to Test Breaker Functionality

Okay, now let's move on to testing the breakers themselves. Breakers are designed to trip (turn off) when there's an overload or short circuit, protecting your wiring and preventing fires. But sometimes, breakers can fail and not trip when they're supposed to. That's why it's important to test them periodically to make sure they're doing their job.

The best way to test a breaker is with a multimeter. A multimeter is a handy little device that can measure voltage, current, and resistance. You can pick one up at most hardware stores for a reasonable price. Before you start, make sure you know how to use the multimeter safely. There are plenty of tutorials online, or you can ask a friend or family member who's familiar with electrical work for help.

To test a breaker, first turn off the power to the circuit you're testing. Then, remove the breaker from the panel. Set your multimeter to the continuity setting (usually indicated by a symbol that looks like a speaker or a diode). Touch one probe of the multimeter to the screw terminal where the wire connects to the breaker and the other probe to the breaker's load terminal (where the wire to the circuit connects). If the multimeter beeps or shows a reading of zero resistance, the breaker is good. If it doesn't beep or shows infinite resistance, the breaker is faulty and needs to be replaced.

Remember, safety first! Always disconnect the power before touching any electrical components. If you're not comfortable with this procedure, please call a qualified electrician. Wed rather you be safe and sound than trying to be an electrical hero. Think of it as knowing your limits — some things are best left to the pros.

Voltage Testing

4. How to Measure Voltage at the Panel

Another important test you can perform is a voltage test. This test checks to make sure you're getting the correct voltage from your electrical panel. Too high or too low voltage can damage your appliances and electronics, so it's important to make sure everything is within the proper range.

To perform a voltage test, you'll need your trusty multimeter again. Set the multimeter to the AC voltage setting (usually indicated by a "V" with a wavy line above it). Then, carefully touch the probes of the multimeter to the terminals of the main breaker. You should get a reading of around 240 volts for a standard residential panel. If you get a reading that's significantly higher or lower than this, there may be a problem with your electrical service that needs to be addressed by a qualified electrician.

You can also test the voltage at individual breakers. To do this, turn on the breaker and carefully touch the probes of the multimeter to the screw terminals. You should get a reading of around 120 volts for a standard circuit. Again, if you get a reading that's significantly higher or lower than this, there may be a problem with the circuit that needs to be investigated.

Remember, working with electricity can be dangerous, so please be careful. Always disconnect the power before touching any electrical components, and use appropriate safety gear. And if you're not comfortable with this procedure, please call a qualified electrician. There is no shame in calling for help, especially when electricity is involved.

Identifying Common Problems and When to Call a Pro

5. Signs That You Need Professional Help

Even if you're comfortable with some basic electrical testing, there are certain situations where you should always call a qualified electrician. These include:

• Any signs of burning or melting
• Frequent breaker tripping
• Flickering lights
• Outlets that don't work
• Water damage to the panel
• Any unusual noises coming from the panel

If you experience any of these issues, don't try to fix them yourself. Electricity is nothing to mess with, so it's always best to err on the side of caution and call a professional. They have the training, experience, and equipment to safely diagnose and repair any electrical problems.

Also, if you're not comfortable with any of the testing procedures described in this article, don't hesitate to call an electrician. It's better to be safe than sorry, and a qualified electrician can quickly and easily identify any potential problems with your electrical panel. Think of it like taking your car to a mechanic — you could try to fix it yourself, but sometimes it's just easier and safer to let the professionals handle it.

Ignoring electrical problems can lead to serious consequences, including electrical fires, so it's important to take them seriously. By performing regular visual inspections and basic testing, you can identify potential problems early and call in a qualified electrician before things escalate. It's like preventative maintenance for your home's electrical system, keeping everything running smoothly and safely.

FAQ

6. Addressing Common Queries About Electrical Panel Testing

Let's tackle some frequently asked questions about electrical panel testing. Hopefully, these answers will clear up any lingering confusion and empower you to take better care of your home's electrical system.

Q: How often should I test my electrical panel?
A: A visual inspection should be done at least once a year. More in-depth testing, like breaker and voltage testing, can be done every few years, or more frequently if you suspect a problem.

Q: Can I replace a breaker myself?
A: While it's technically possible, we strongly recommend against it unless you have experience with electrical work. Incorrectly installing a breaker can be dangerous and could lead to electrical fires. It's always best to call a qualified electrician.

Q: What does it mean when a breaker trips frequently?
A: Frequent breaker tripping can be a sign of an overloaded circuit, a short circuit, or a faulty breaker. It's important to investigate the cause of the tripping and address the problem before it leads to more serious issues. Try unplugging some appliances on that circuit to see if that helps. If the problem persists, call an electrician.

Q: Is it normal for my electrical panel to make noise?
A: A slight humming sound is usually normal. However, buzzing, crackling, or popping sounds are not normal and could indicate a serious problem. Turn off the power to the panel and call an electrician immediately.
